BNT-1650F CANATURE

Description

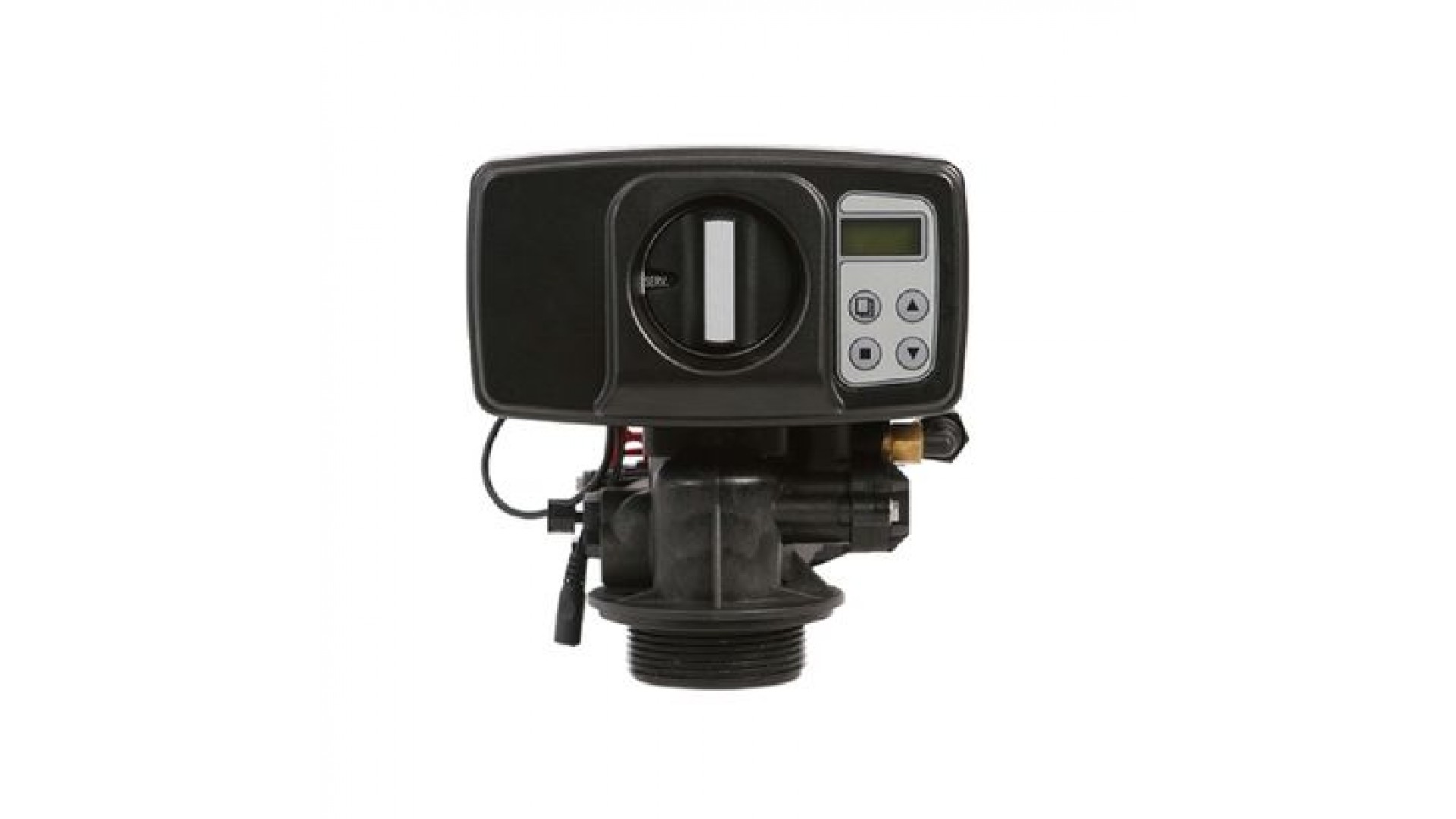

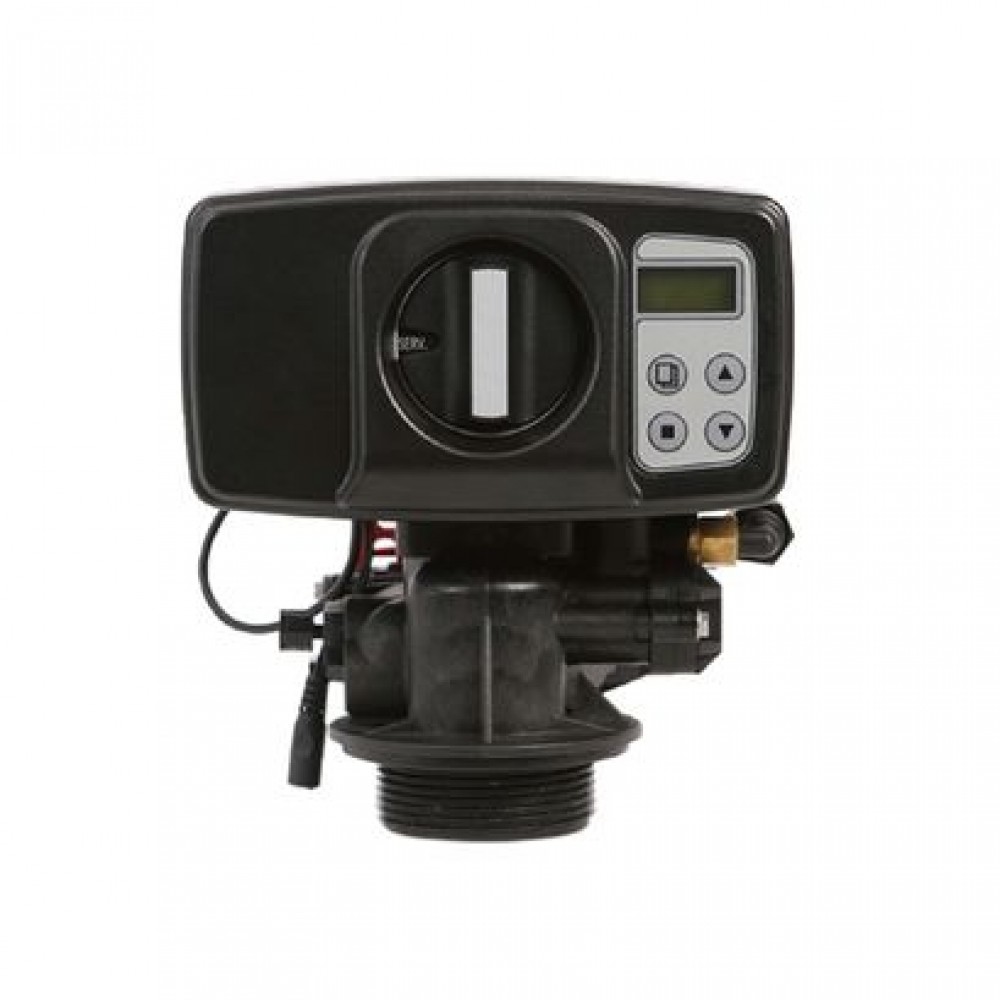

The Canature BNT-1650F softener VALVE  is an ideal solution for reliable and precise water management in residential and commercial applications. As a central component of any water purification system, it effectively manages water hardness while performing all maintenance, rinsing, and resin regeneration tasks with accuracy and reliability.

The VALVE  supports two types of regeneration programming:

• Time-controlled: Regeneration begins at a scheduled time, allowing flexible daily or interval-based programming.
• Volumetric: Regeneration is triggered according to actual water consumption, monitoring the treated water volume for optimal performance and efficiency.

The BNT-1650F can be programmed either volumetrically or time-controlled, ensuring complete control of the softening process, high efficiency, and cost savings. Made of durable Noryl® (PPO) material and suitable for tanks up to 14", it is versatile and reliable for any softening system.

Technical Specifications:

• Programmable: Volumetric / Time-based

• Operating Flow Rate: 4.5 m³/h (1 bar pressure drop)

• Backwash Flow Rate: 1.6 m³/h

• Cv: 5.2

• Operating Pressure: 1.4 – 8.4 bar

• Input Power Supply: 220–240 V AC, 50/60 Hz

• Output Power Supply: 12 V AC, 650 mA

• Valve Material: Noryl (PPO)

• Tank Size: Up to 14" diameter

• Tank Connection: 2 1/2" NPSM

• Resin Volume Range: 5–75 L

• Drain Line Connection: 1/2"

• Brine Line Connection: 3/8"

• Distributor Tube Length Above Tank: 8 mm

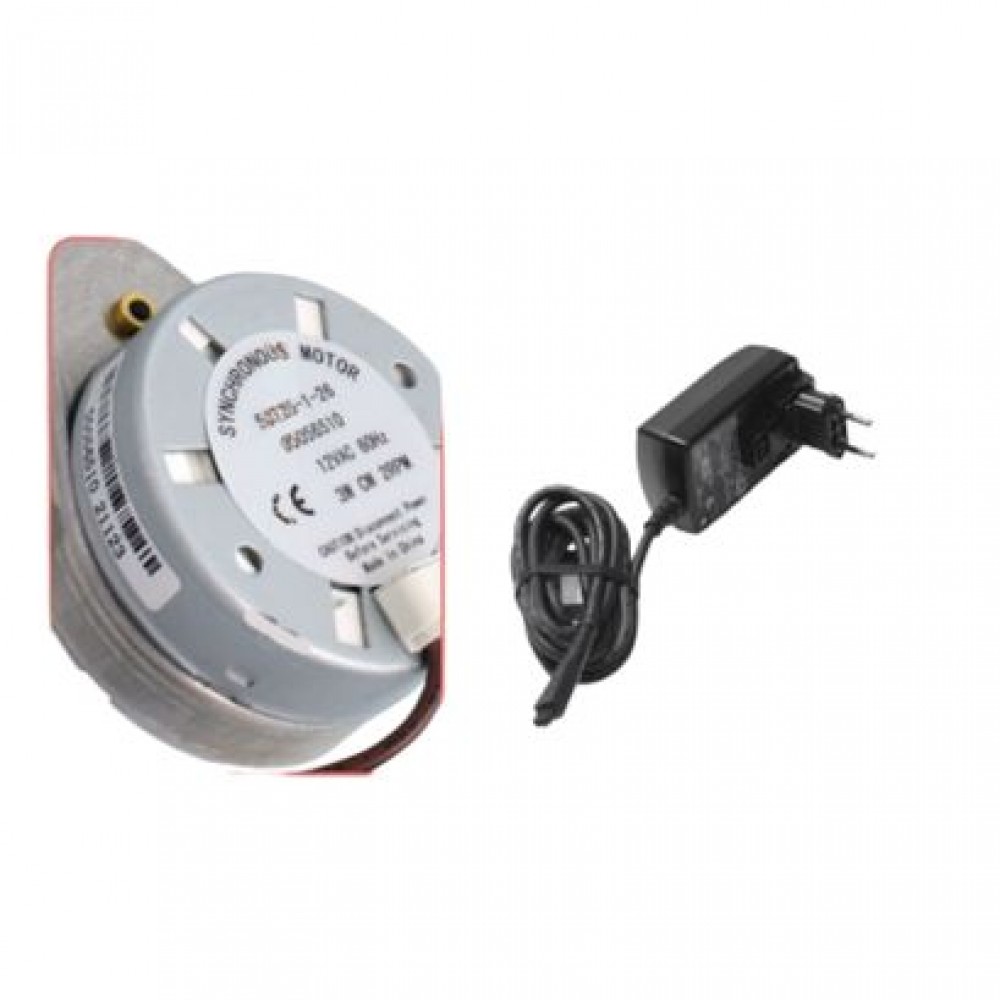

• Included Accessories: European transformer, user manual, bypass with flow meter, all in one unit
