V.AC-12 ACE

Description

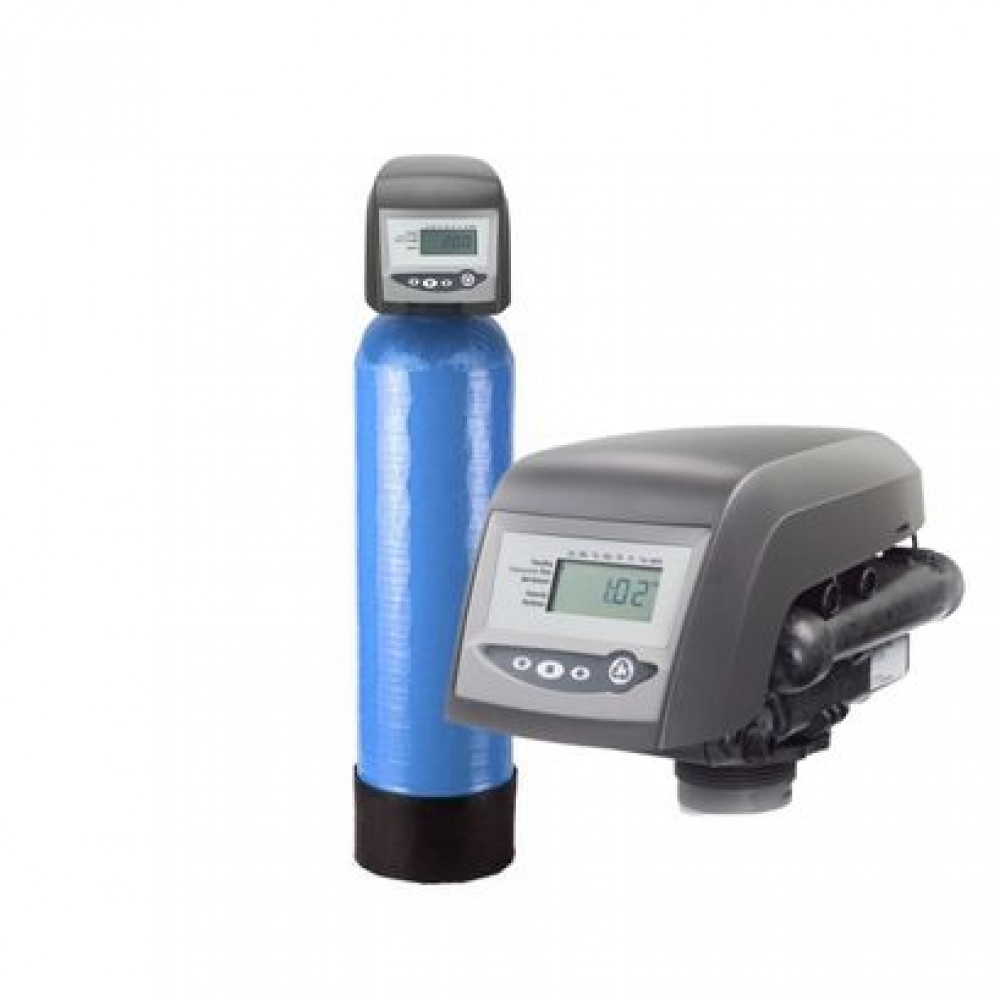

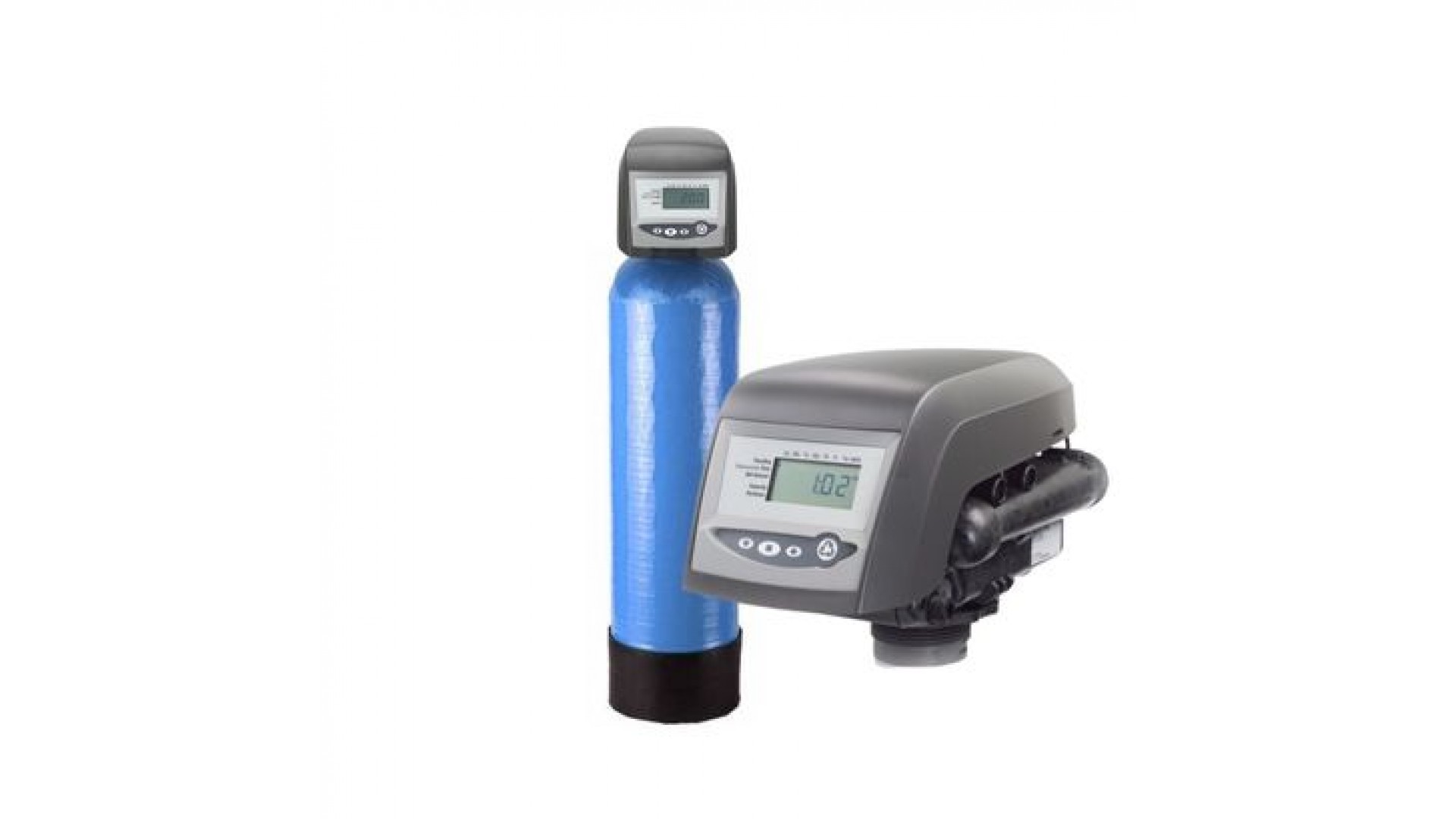

The V.AC-12 ACE is an automatic activated carbon filter designed to remove chlorine, organic compounds, and unwanted odors from water. It maintains the carbon in excellent condition when chlorine concentration does not exceed 3–4 mg/L, ensuring safe and clean water for residential and commercial use.

The PENTAIR 263/742F control valve  and 3-cycle timer programming provide reliable, automated operation. Periodic rinsing with chlorinated water every 1–2 days is recommended for maximum effectiveness.

Note:

The maximum flow rate is set to maintain the required operating speed, regardless of inlet pressure. Data refers to water with turbidity <10 mg/l SiO₂. Flow values are calculated with feed water at TDS 500 ppm and 20°C.

Technical Specifications:

• Valve Material: Thermoplastic with glass lining

• Tank Material: Pressure vessel made of fiberglass-reinforced synthetic material with threaded fibers

• Electrical Requirements: 220 VAC / 50 Hz

• Controller Operating Voltage: 12 VAC (transformer included)

• Water Pressure Range: 2–6 bar

• Water Temperature Range: 5°C – 38°C

• Maximum Power Consumption: 5 W
